Custom mold tooling · China → United States

Custom injection mold tooling for production-ready plastic parts.

Send a part file, drawing, sample, or project brief. We review fit first, then clarify DFM risks, tooling assumptions, timing, and the path to a reliable mold quotation.

  • First human response targeted within 24 hours
  • DFM review and final quotation timing confirmed after scope review
  • Files optional for the first contact

Project qualification

Tooling programs with a clear part, production plan, and decision path.

General automotive parts are reviewed case by case. We do not currently hold ISO 9001 or IATF 16949 certification and have not completed a PPAP submission. For OEM or Tier-1 programs, we first check supplier qualification requirements and customer-specific approvals. We can discuss cooperation with your team on the required documents and tests; feasibility, scope and responsibilities must be agreed before quotation. A review does not commit us to take the program or guarantee customer approval. High-cavity, ultra-thin-wall and extreme-tolerance requests also need a project-specific engineering review. Capabilities we cannot demonstrate remain outside the quoted scope.

Good starting point

Projects we want to review

  • Custom plastic parts for consumer, household, industrial, construction, or agricultural applications
  • General automotive interior, exterior, or under-hood components reviewed case by case
  • Programs with a 3D model, 2D drawing, sample, photos, or a clear part specification
  • Company projects with an expected mold budget from US$5,000 or a defined production plan
Needs a different supplier or more evidence

Projects outside the first-stage scope

  • Medical devices, aerospace parts, or safety-critical components requiring special compliance
  • Automotive Tier-1 or OEM programs whose supplier qualification or customer-specific approval requirements remain unverified
  • Extreme tolerance, ultra-thin-wall, or high-cavity programs outside demonstrated capability
  • Commodity mold-base trading, student requests, or idea-only inquiries without usable part information

Project photos and source context

Project photos and trial context.

Project-specific specifications are confirmed from the buyer's data. We do not replace engineering evidence with unsupported certifications, logos, or generic promises. JF MOULD confirms that it manufactured a spoon injection mold, completed its trials, received customer acceptance, and shipped the mold. See the sample photos and confirmation details on the project page.View the spoon mold project

Mold exterior with visible plates and connection points

Mold exterior and linked trial
Owner-authorized photo. JF MOULD confirms it shows the same mold as the trial footage on our process page; dimensions and acceptance records are not supplied. View the source context

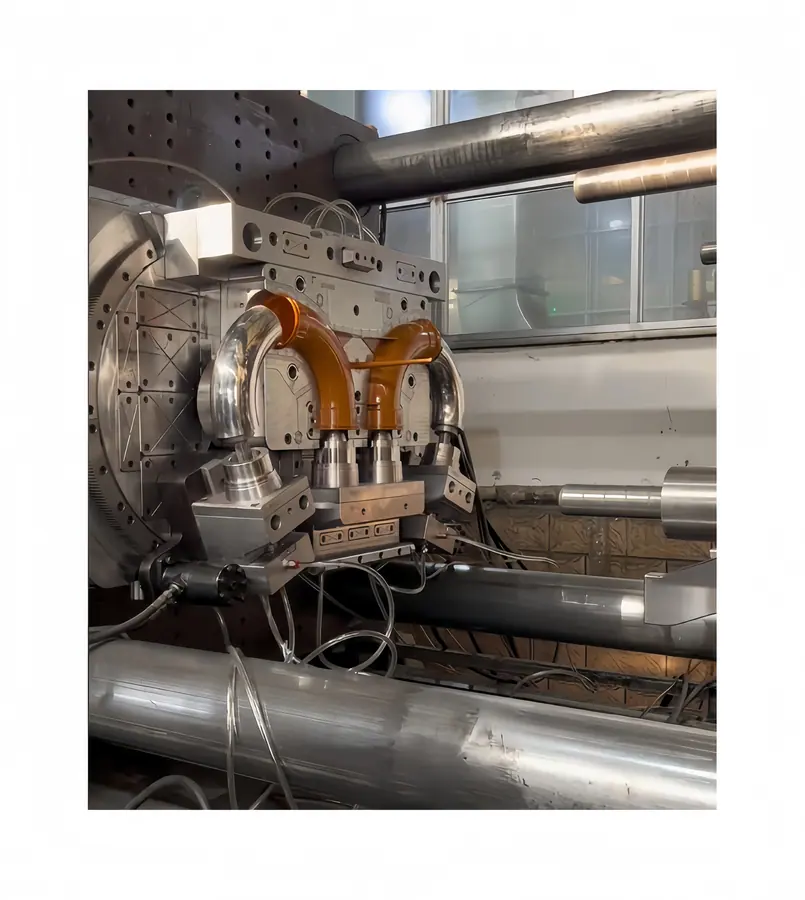

Authorized frame from the linked mold trial footage

Mold trial reference
Authorized frame from the mold trial on our process page; it does not establish acceptance or production performance. View the source context

Open four-cavity elbow mold with matching mold halves

Four-cavity elbow mold
Owner-supplied photo. JF MOULD confirms this mold has shipped. The shipment date and inspection results remain unconfirmed. View the source context

Quotation-stage technical examples

Three technical examples buyers can review before sending an RFQ.

These quotation-stage technical references have no verified customer-project source. Each example shows geometry to review, engineering questions, buyer inputs, and acceptance planning. It does not claim a completed customer project or a measured result.

Automotive
Technical exampleQuotation-stage review

Sensor Mount Mold Technical Example

A sensor mount mold technical example for reviewing locating datums, sensor seating, mounting features and fit tolerances before quotation.

Review focus
Review the datum scheme, locating holes or pins, sensor seating faces, mounting pads, fastener clearances, and connector or cable access against the mating assembly.
Buyer inputs
Send the mount, sensor and mating-part files, a drawing with datums and critical fits, exact resin grade, fastener or insert details, assembly loads, service conditions, and the required inspection method.
  • automotive
  • vehicle
  • sensor-mount
Automotive
Technical exampleQuotation-stage review

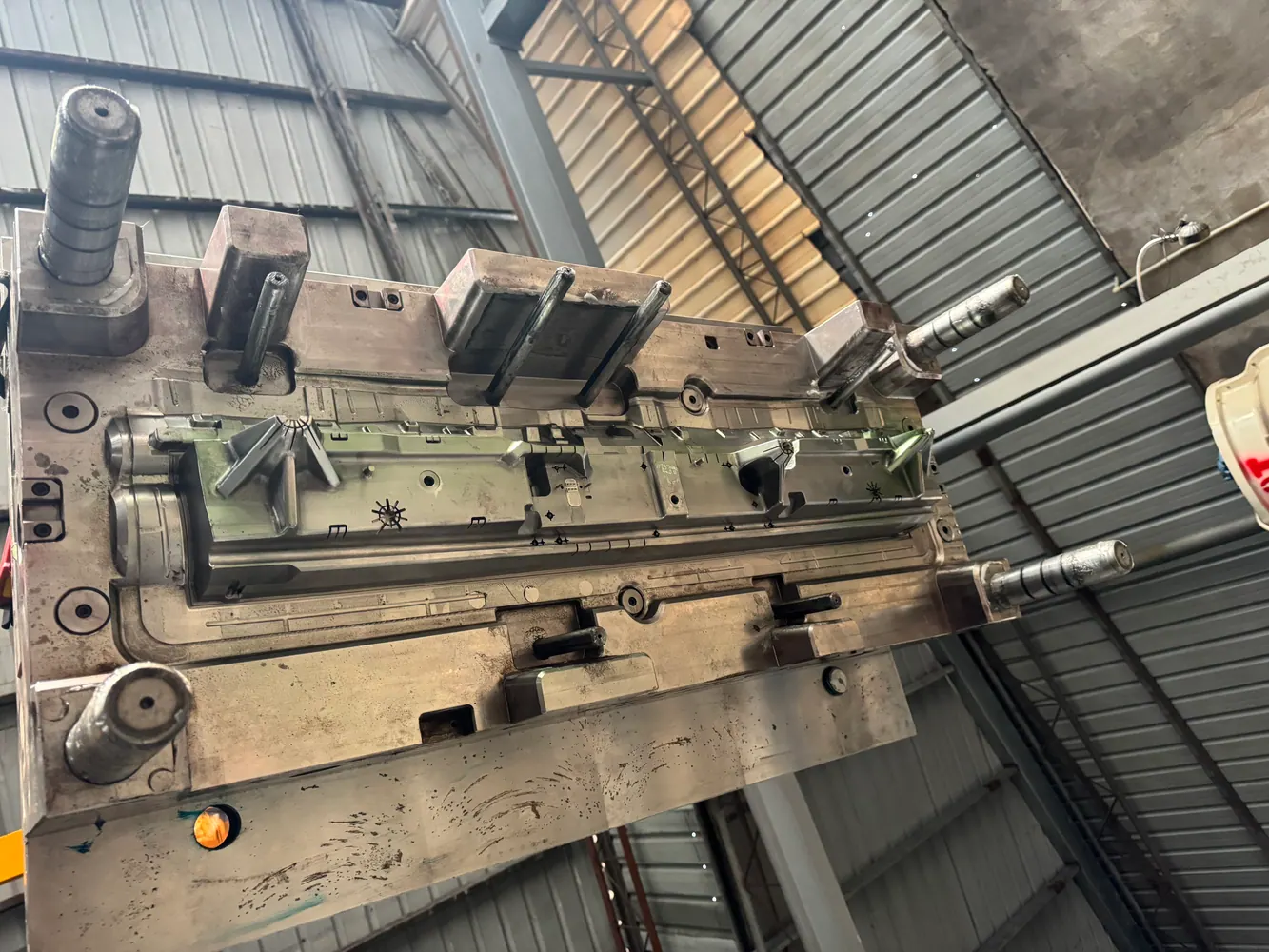

Under-hood Component Cover Mold Technical Example

A cover mold technical example for reviewing snap-fits, wall transitions, flatness and buyer-defined assembly checks before quotation.

Review focus
Review the cover perimeter, mating flange, snap-fit hooks, clip roots, screw bosses, ribs, wall transitions, and release direction; identify which features are actually present in the buyer's design.
Buyer inputs
Send the cover and mating-part files, exact resin grade, wall-thickness priorities, clip engagement and service-removal requirements, mounting datums, and any heat or chemical exposure conditions.
  • automotive
  • car
  • component-cover
Packaging
Technical exampleQuotation-stage review

Thin-wall takeaway container Mold Technical Review

A quotation-stage thin-wall takeaway food container technical example covering geometry, engineering questions, buyer inputs, and acceptance planning without claiming a completed customer project.

Review focus
Review wall thickness, rim and closure geometry, stacking or nesting features, label surfaces, draft, gate position, and ejection areas against the buyer's file.
Buyer inputs
Provide the part file, resin, wall-thickness target, annual volume, cavity target, machine limits, decoration method, stacking requirements, and target cycle for review.
  • packaging
  • thin-wall
  • food-packaging
Browse Projects and Technical Examples

Tooling process

From part information to mold trial and export handoff.

  1. 01

    Part and RFQ review

    We check the part file or brief, resin, annual volume, cavity direction, machine information, timing, and delivery destination.

  2. 02

    Initial DFM and quote direction

    We identify manufacturability risks, missing inputs, mold assumptions, and the next step needed for a reliable quotation.

  3. 03

    Mold design and manufacturing

    Approved programs move through design, machining, EDM, fitting, and documented engineering communication.

  4. 04

    Trial and correction

    Trial parts are reviewed against the agreed project requirements before corrections and approval planning.

  5. 05

    Export handoff

    Packing, included documents, destination, and logistics responsibilities are confirmed before shipment.

Free initial review

Share enough information to replace assumptions with an engineering conversation.

You do not need every field or file on day one. We will confirm missing information and whether the program fits before a formal quotation.

  • 3D CAD, 2D drawing, sample, or clear photos
  • Part resin and any critical surface or tolerance requirements
  • Annual volume and preferred cavity count
  • Available injection machine or clamp tonnage
  • Target date and mold delivery destination
  • Known validation, trial, or export-document requirements
Request a Mold Quote

Frequently asked questions

Before you send the project.

Can you review a project without a 3D CAD file?

Yes. You can start with a 2D drawing, sample, clear photos, or a detailed part brief. A reliable final quotation may require additional project data.

Is the initial DFM and quotation review free?

Yes, for a real company project with enough part information to review. Complex simulation, detailed mold design, or formal validation work is scoped separately.

How quickly will you respond?

We target a first human response within 24 hours. We will confirm any information needed for DFM review or a final quotation. Complex formal quotations can take longer.

Do you only export molds, or can you also mold parts?

Custom mold design, manufacturing, trials, and export are the primary scope. Trial molding, pilot quantities, and ongoing injection molding can be reviewed as supporting services.

Does the quotation include delivery to the United States?

It depends on the agreed scope. The quotation should state the delivery destination, trade terms, packing, included documents, and responsibility for freight and import.

Do you accept every injection mold project?

No. We first confirm that the part complexity, compliance needs, tooling scope, and delivery requirements fit our demonstrated capabilities.

Next step

Send the available part information. We will confirm project fit before quotation.
