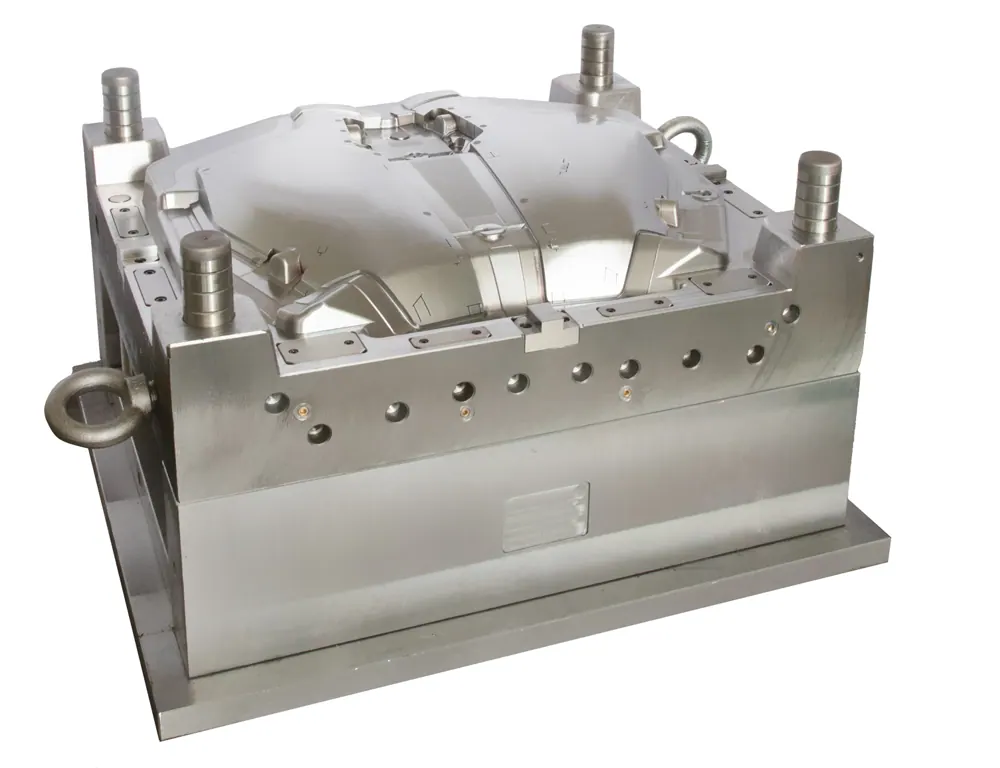

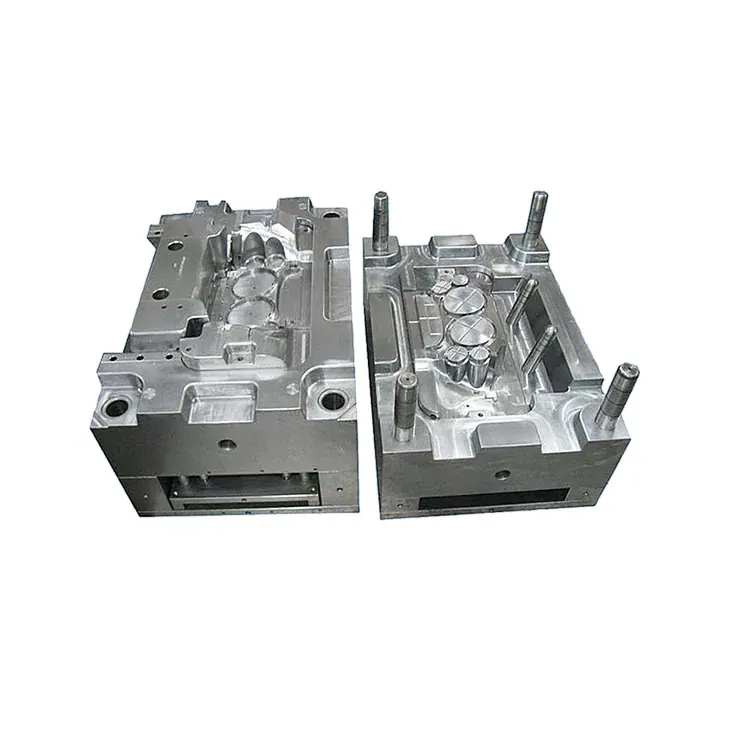

Under-hood Component Cover Mold Technical Example
A cover mold technical example for reviewing snap-fits, wall transitions, flatness and buyer-defined assembly checks before quotation.
Evidence Boundary
Quotation-stage guidance, not a published customer project
This page has no registered project source or media provenance. It does not claim a customer identity, project result, steel grade, cavity count, cycle time, tool life, delivery timeline, acceptance result, or production performance.
Engineering Snapshot
What to resolve before requesting a quotation
Parting line, cores or slides, gating, cooling, venting, ejection, fit, and maintenance.
Include critical dimensions, machine limits, and the required trial acceptance plan.
Define Before Trial
Measurement and Validation Inputs
- Agree how cover flatness, mating gaps, clip engagement, insertion or retention force, and visible sink or witness marks will be checked against buyer-defined limits.
- Define trial resin, conditioning, sample identification, assembly fixture, correction responsibility, and any separately required environmental tests before acceptance.
Technical Notes and RFQ Context
This technical example is a quotation-stage review guide. It is not a verified customer case, and it does not publish project images, customer identity, production metrics, acceptance results, or delivery performance.
Geometry to review
Which features locate and retain the cover: snap-fit hooks, screw bosses, a mating flange, or a combination? Review clip roots, undercuts and release direction against the proposed parting line. Mark the cover perimeter, sealing or mating edges if specified, ribs and wall-thickness transitions. These are features to check in the buyer’s design, not a description of a manufactured part.
Engineering questions before quotation
Are the clips intended for one-time assembly or repeated service removal, and what deflection or retention requirements does the buyer specify? Review whether the hook geometry can be released without damage. Assess thick sections at bosses and rib junctions for sink and differential shrinkage risk. How could gate location, weld lines, cooling balance and ejection loads affect cover flatness, mating gaps and clip alignment? Any proposed geometry or material change needs buyer review before the tool concept is agreed.
Buyer inputs to send
Send the cover and mating-part files, the drawing revision and exact resin grade, including reinforcement if specified. Identify nominal wall thickness, permitted changes at ribs or bosses, clip engagement, mounting datums and allowable mating gaps. State the expected assembly or removal method and service conditions; heat, chemical exposure or sealing requirements should remain open if they are not yet defined. Add annual demand, a cavity target if known and receiving-machine limits for the tooling review.
Acceptance-plan questions
Agree the datum setup and method for checking cover flatness, perimeter fit, clip engagement and visible sink or witness marks. If insertion, retention or repeated-removal checks are needed, who supplies the mating parts and fixture, and what conditions and limits apply? Define trial resin, sample identification, conditioning and correction responsibility. Any required heat, chemical or sealing tests need a separate scope and feasible acceptance plan; this example reports no test result or automotive approval.
