Challenge
The part combined deep ribs, cosmetic grain and metal insert clearance, which created a high risk of sink marks and trim distortion.
Automotive interiors

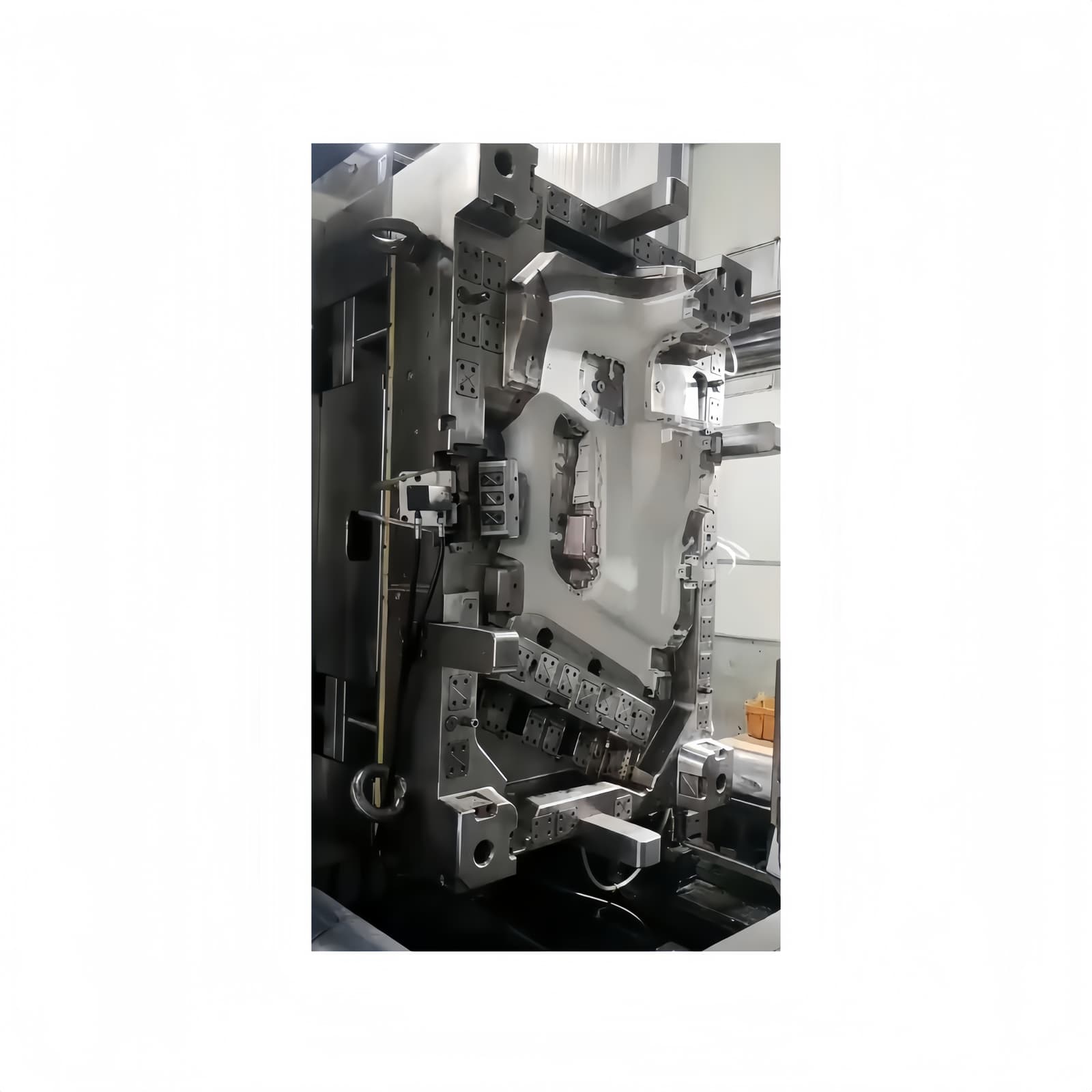

Automotive Instrument Panel Bracket Mold
Interior bracket mold for a German automotive supplier with cosmetic surface control and insert-fit stability.
Solution
JFMOULD reworked the gate balance, added localized cooling around the ribs and tuned shutoff geometry to stabilize the insert fit.
Result
The first sampling round achieved stable assembly dimensions, reduced sink visibility and met the customer's PPAP timing target.
Program Notes
This case focused on a trim bracket that had to survive dimensional checks, cosmetic review and downstream clip assembly in a tight launch schedule.
Start Your Mold Project
Get Free DFM Review
Share your drawing, sample or idea and we will reply with practical mold feedback within 12 hours.
Automotive Automotive Battery Cover Mold
Large automotive battery cover mold built for low warp, stable sealing edges and fast EV launch support.
- Challenge
- A large flat cover with snap locks required stiffness and low warp while keeping sealing edges consistent across temperature variation.
- Result
- The customer reached sealing validation in the second trial and shortened SOP preparation by nearly two weeks.
Automotive Automotive Air Duct Housing Mold
Two-cavity air duct housing mold tuned for leakage control, clean shutoff and stable clip force.
- Challenge
- The housing used thin walls, multiple clips and an airflow channel that was sensitive to flash and mismatch.
- Result
- The molded housing met leakage and clip force targets while keeping the launch timing on schedule.
Automotive Automotive Door Trim Clip Mold
High-cavity automotive clip mold built for cavity balance, clean ejection and stable retention force.
- Challenge
- Small clips demanded tight dimensional consistency across eight cavities, while ejector stress risked whitening at the hook area.
- Result
- Retention force stayed within the client's range and cavity balance supported immediate pilot production.
